HPC- High Performance Counting Discs
More than 30 years of experience in the series production of counting discs and several thousand deliveries testify to our expertise.
Almost any substrate used in the global printing industry, such as paper, cardboard, cardboard packaging, polymers and hybrids, whether printed, unprinted, laminated or coated, can be processed from 30 – 1,100 GSM.
Multi-layer laminates made of PC, PVC or similar materials can be counted from 40 µm to 900 µm.
Regardless of the coating, whether high-gloss or matt finish, our discs can handle the majority of the end products.
Flexible
Universal
Gentle
Advantages and features of the disc counting technology

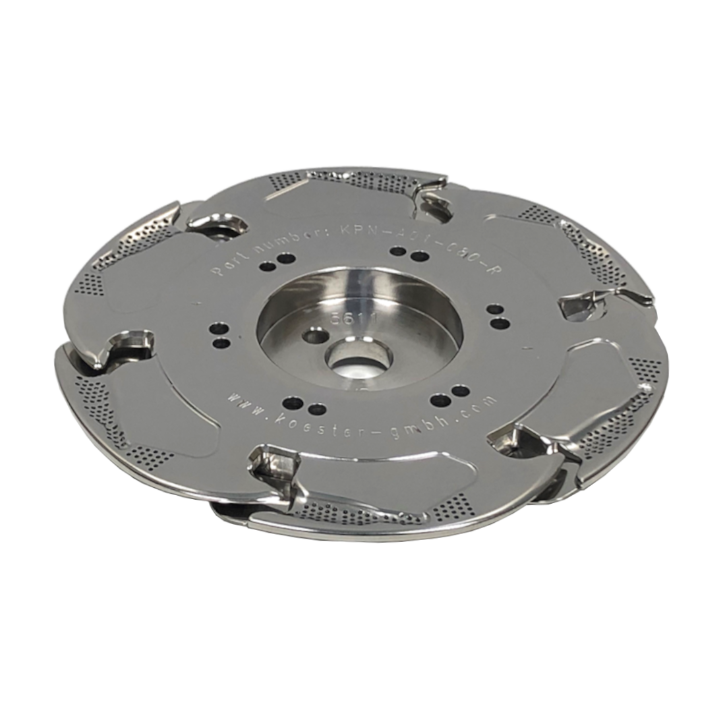

Our counting machines are used to determine the exact number of sheets in a layer. Similar to the machines from Vacuumatic or GTS, the counting process takes place from top to bottom or from bottom to top, depending on the machine design and requested type of application. The corner or the side edge of a single sheet is sucked onto the rotating counting disc by means of vacuum, thereby separated from the rest of the layer, and then guided through a gap to the top of the disc. While the sheet is in the gap, a signal is generated and the sheet is thus physically counted. The counting disc works its way through the layer sheet by sheet. Depending on the type of counting disc, up to 6 sheets can be sucked in and counted absolute accurate in one revolution.
For products with different stiffness, GSM values or thickness, there are different counting discs types and designs; eg. a 30 GSM product requires a different counting disc design than a 1.100 GSM product or a 40µm product .
The maximum counting speed also depends on the product to be counted. With our machines and counting discs, a counting speed of more than 200 absolute accurate counts per second can be achieved, an unique feature.
Our counting machines and counting discs are the preferred choice in the security printing industry, where all the advantages of our counting technology are in demand: Physical counting of each individual sheet, Highest Accuracy, High Speed, Gentle treatment of the product being processed, without leaving any marks or deformations, Counting of banded products, such as bundles of banknotes or tax stamps almost without any limitation, due to the low immersion depth of our counting discs.
Most Frequent Counting Discs
Type |
Part No. |
Alternative Part No. |
Diameter |
|---|---|---|---|
R6,5 R6,5 |
KPN-A01-010-R KPN-A01-010-L |
10.0101046.R119.6 10.0101046.L119.6 |
119,6 mm 119,6 mm |
V8 V8 |
KPN-A01-080-R KPN-A01-080-L |
10.0101046.R119.6/13V8 10.0101046.L119.6/13V8 |
119,6 mm 119,6 mm |
V8 40gr |
KPN-A01-081-R |
10.0101046.R119.6V8_40GR |
119,6 mm |
V9 V9 |
KPN-A01-090-R KPN-A01-090-L |
10.0101046.R129.6V9 10.0101046.L129.6V9 |
129,6 mm 129,6 mm |
V10 V10 |
KPN-A01-100-R KPN-A01-100-L |
10.0101046.R129.6V10 10.0101046.L129.6V10 |
129,6 mm 129,6 mm |
V11 V11 |
KPN-A01-110-R KPN-A01-110-L |
10.0101046.R129.6V11 10.0101046.L129.6V11 |
129,6 mm 129,6 mm |
V12 V12 |
KPN-A01-120-R KPN-A01-120-L |
10.0101046.R129.6V12 10.0101046.L129.6V12 |
129,6 mm 129,6 mm |
V13 V13 |
KPN-A01-130-R KPN-A01-130-L |
10.0101046.R139V13 10.0101046.L139V13 |
139 mm 139 mm |
V15 |
KPN-A01-150-R |
10.0101046.R139V15 |
139 mm |
C1 |
KPN-A02-001-R |
10.0101046.R112/13_C1 |
112 mm |
C2 C2 |
KPN-A02-002-R KPN-A02-002-L |
10.0101046.R129.6/10_C2 10.0101046.L129.6/10_C2 |
129,6 mm 129,6 mm |
C3 |
KPN-A02-003-R |
10.0101046.R119.6_C3 |
119,6 mm |
C6 C6 |
KPN-A02-006-R KPN-A02-006-L |
129,6 mm 129,6 mm |
|
S1 S1 |
KPN-A03-001-R KPN-A03-001-L |
10.010101046.R139S1 10.010101046.L139S1 |
139 mm 139 mm |
S2 S2 |
KPN-A03-002-R KPN-A03-002-L |
10.0101046.R119.6/8_S2 10.0101046.L119.6/8_S2 |
119,6 mm 119,6 mm |
S3 S3 |
KPN-A03-003-R KPN-A03-003-L |
10.0101046.R119.6/8S3 10.0101046.L119.6/8S3 |
119,6 mm 119,6 mm |
S4 S4 |
KPN-A03-004-R KPN-A03-004-L |
10.0101046.R129.6/8_S4 10.0101046.L129.6/8_S4 |
129,6 mm 129,6 mm |
S5 S5 |
KPN-A03-005-R KPN-A03-005-L |
10.0101046.R129.6/8_S5 10.0101046.L129.6/8_S5 |
129,6 mm 129,6 mm |
S6 S6 |
KPN-A03-006-R KPN-A03-006-L |
10.0101046.R158/8_S6 10.0101046.L158/8_S6 |
158 mm 158 mm |
S7 S7 |
KPN-A03-007-R KPN-A03-007-L |
10.0101046.R158/8_S7 10.0101046.L158/8_S7 |
158 mm 158 mm |
S8 S8 |
KPN-A03-008-R KPN-A03-008-L |
136 mm 136 mm |
Take a closer look
Product Highlights
Qualities |
Diameter |
Application |
|---|---|---|
35 – 90 GSM |
⌀ 112 mm |
small cutsizes from 9 x 32 mm (e.g. tax stamps) |
Qualities |
Diameter |
Application |
|---|---|---|
30 – 150 GSM |
⌀ 129,6 mm |
standard for most applications |
Qualities |
Diameter |
Application |
|---|---|---|
50 – 200 GSM |
⌀ 129,6 mm |
standard for higher GSM values |
Qualities |
Diameter |
Application |
|---|---|---|
40-200 GSM |
⌀ 158 mm |
edge counting, offset -4 to +4mm |
Qualities |
Diameter |
Application |
|---|---|---|
300->500 GSM |
⌀ 158 mm |
edge counting, highest maximum product thickness |
